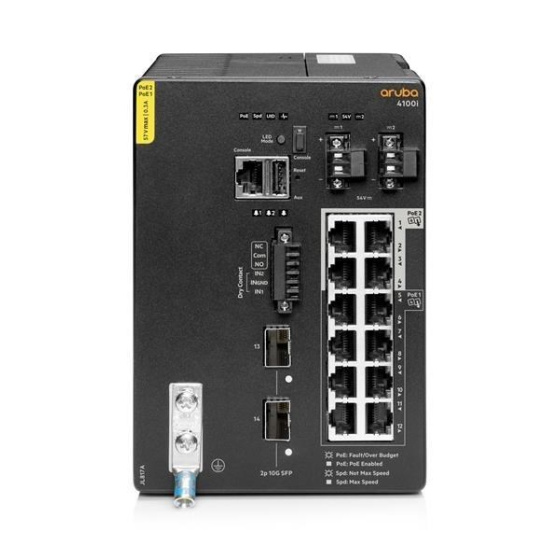

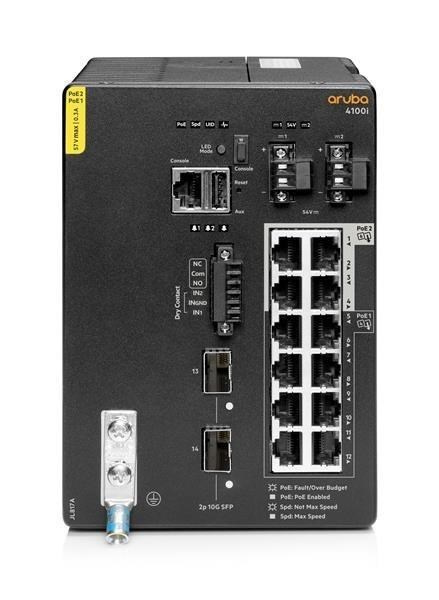

Aruba 4100i 12-port 1GbE (8-port Class 4 POE and 4-port Class 6 POE) 2-port SFP+ DIN Mount Switch JL817A RENEW

Name: Aruba 4100i 12-port 1GbE (8-port Class 4 POE and 4-port Class 6 POE) 2-port SFP+ DIN Mount Switch JL817A RENEW
Brand: Hewlett Packard Enterprise
SKU: 713904
Price: 61017 CZK
Availability: OutOfStock

Kód: 713904

Na dotaz

Termín a způsob doručení

Hewlett Packard Enterprise

Provedení:DIN Rail; Funkce:QoS (Quality of service), VLAN (virtual local area network), PoE (Power over ethernet), L3; Technologie:Gigabit Ethernet 1000Mbps; PoE budget (W):370; Počet SFP portů:4; Počet SFP portů:4; Maximální počet portů:12; PoE budget (W):370; Přenosová rychlost LAN (Mb/s):570; Maximální počet portů:12; Management:SNMP/RMON.Více

Oblíbený

Porovnat

Vyberte si zvýhodněné balení

Množstevní slevy

Dotaz

Hlídat

Parametry

Výrobce:

Hewlett Packard Enterprise

Kód:

713904

EAN:

713904

Záruka:

24 Doživotní

Stav:

Maximální počet portů:

Provedení:

DIN Rail

Technologie:

Gigabit Ethernet 1000Mbps

Management:

SNMP/RMON

Vlastnosti switche:

Funkce POE po portech

Přenosová rychlost LAN (Mb/s):

570

Funkce:

QoS (Quality of service), VLAN (virtual local area network), PoE (Power over ethernet), L3

Počet SFP portů:

PoE budget (W):

370

Maximální počet portů:

12,000000000

Počet SFP portů:

4,000000000

PoE budget (W):

370,000000000

Popis Aruba 4100i 12-port 1GbE (8-port Class 4 POE and 4-port Class 6 POE) 2-port SFP+ DIN Mount Switch JL817A RENEW

Naposledy navštívené produkty

Aruba 4100i 12-port 1GbE (8-port Class 4 POE and 4-port Class 6 POE) 2-port SFP+ DIN Mount Switch JL817A RENEW

Aruba 4100i 12-port 1GbE (8-port Class 4 POE and 4-port Class 6 POE) 2-port SFP+ DIN Mount Switch (JL817A)
Description	4x ports 100M/1G BaseT Class 6 PoE ports supporting up to 60W per port 8x ports 100M/1G BaseT Class 4 PoE ports supporting up to 30W per port
	2x 1/10G SFP ports
	Supports PoE Standards IEEE 802.3af, 802.3at and 802.3bt (up to 60W)
	1x USB-C Console Port 1x RJ Console 1x USB Type A Host port 1x Alarm socket 2x DC power socket
Power Supplies	Field replaceable Industrial DIN Rail Power Supplies
	Supported PSUs: JL819A, JL820A and JL821A Supported 2 PSU with redundancy, non sharing
	See external PSU specification table for available PoE power
Fans	Fanless
Physical Characteristics	Dimensions	(H) 160 mm x (W) 113 mm x (D) 162.9 mm (173.5 mm w/DIN Rail Bracket) [6.3" x 4.4" x 6.4"(6.8" w/DIN Rail Bracket)]
Physical Characteristics	Weight	3.84 kg (8.46 lbs)
Mounting And Enclosure	Cable management kit included. 2-post rack mounting kit included. 4-post rack mounting kit available separately
Additional Specifications	CPU	Dual Core ARM Cortex A9 @ 1016 Mhz
	Memory And Flash	4 GB DDR3 32 GB eMMC
	Packet Buffer	12.38MB (4.5MB Ingress/7.875MB Egress)
Performance	Model Switching Capacity	up to 64 Gbps
	Model Throughput Capacity	up to 46 Mpps
	Average Latency (LIFO-64-bytes packets)	1 Gbps: 2.390µSec , 10 Gbps: 2.038µSec
	Switched Virtual Interfaces (dual stack)	1G: 5.32 µSec 10G: 1.48 µSec 25G: 2.78 µSec 40G: 1.31 µSec 100G: 1.42 µSec
	IPv4 host table (ARP)	756
	IPv6 host table (ND)	576
	IPv4 unicast routes	576
	IPv6 unicast routes	576
	MAC Table Size	8192
	IGMP Groups	512
	MLD groups	512
	IPv4/IPv6/MAC ACL entries (ingress)	256 / 128 / 256
Environment	Operating temperature	-40°C to 60°C, 0m/s (-40°F to 140°F, 0 LFM) -40°C to 70°C, 0.2m/s (-40°F to 158°F, 40 LFM) -34°C to 75°C, 1m/s (-29.2°F to 167°F, 200 LFM)
	Non-Operating Storage relative humidity	5% to 95%, non-condensing
	Max Operating Altitude	up to 4.2 km (13800 ft) Max
	Max non-operating Altitude	4.6 km (15000 ft) Max
Electrical Characteristics	Frequency	N/A
	AC voltage	Refer to the PSU specification table
	DC Input Voltage	54V (switch input voltage, provided by JL819A, JL820A, JL821A)
	Current	JL820A- max 8A (360W PoE) JL819A, JL821A- max 4.4A (180W PoE)
	Maximum heat dissipation BTU/hr	With JL819A PSU: 89 BTU/hr at 230V - Room temperature (25°C) With JL820A PSU: 95 BTU/hr at 230V - Room temperature (25°C) With JL821A PSU: 94 BTU/hr at 48V - Room temperature (25°C)
	Power Consumption (JL819A, JL820A- 230VAC) (JL821A- 48VDC)	With JL819A PSU: Idle: 22W 100% Traffic Rate: 26W 100% Traffic Rate (w/ heater): 55W With JL820A PSU: Idle: 24W 100% Traffic Rate: 28W 100% Traffic Rate (w/ heater): 57W With JL821A PSU: Idle: 22W 100% Traffic Rate: 27W 100% Traffic Rate (w/ heater): 56W *Heater will only turn on at extreme low temperature condition
Safety	Europe: EN 60950-1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 EN 62368-1, Ed.2:2014 North America: UL 62368-1, 2nd Edition CAN/CSA C22.2 No. 62368-1-14 Worldwide: IEC 60950-1:2005 Ed.2 + Am 1:2009 + A2:2013 IEC 62368-1:2014 EN/IEC 60825-1:2014 Class 1 UL/IEC 61010-2-201 GB 4943.1:2011 CNS 14336-1 K 60950-1
EMC	Europe: EN 55011:2010/CISPR 11, Class A EN 55032:2015/CISPR 32, Class A EN 55035:2017/CISPR 35 EN 61000-3-2:2014, Class A EN 61000-3-3:2013 US: FCC CFR 47 Part 15: 2018 Class A Canada: ICES-003 Class A Japan: VCCI Class A Taiwan (BSMI) CNS 13438 Class A Korea KN 35:2015 Korea KN 32 Class A Aus/NZ AS/NZS CISPR 32 Class A Worldwide: VCCI Class A CISPR 11 Class A CISPR 22 Class A
Lasers	EN 60825-1:2007 / IEC 60825-1:2007 Class 1 Class 1 Laser Products / Laser Klasse 1 (Applicable for accessories - Optical Transceivers only
Industry Specific Compliance	Industrial	EN 61000-6-2 Industrial Immunity EN 61000-6-4 Industrial Emissions EN 61000-6-1 Light Industrial Immunity
	Power Substation	IEEE 1613 Electric Power Stations Communications Networking EN/IEC 61850-3 Electric Substations Communications Networking
	Railway Application	EN 50121-3-2 Railway - Apparatus for Rolling Stock EN 50121-4 Railway - Signaling and Telecommunications Apparatus EN 50155/IEC 60571 - Railway applications, Rolling stock, Electronic equipment
	Traffic Control System	NEMA TS 2-2016
	Protection Standard	EN 60529 IP30
Immunity	Generic	EN 55035, CISPR 35, KN35
	EN	EN 55035, CISPR 35
	ESD	EN 61000-4-2 (air - 15kV, contact - 8kV)
	Radiated	EN 61000-4-3 (10V/m UTP, 20V/m STP)
	EFT/Burst	EN 61000-4-4 4kV (1kV UTP, 4kV STP) using: JL819A, JL820A with SPD2-300-2P0-R surge protector JL821A with SPD2-150-2P0-R surge protector needed. Without surge protector and STP: JL819A or JL820A PSU: 2kV JL821A PSU: 1kV
	Surge	EN 61000-4-5 2kV/4kV(UTP) using: JL819A, JL820A with SPD2-300-2P0-R surge protector JL821A with SPD2-150-2P0-R surge protector Without surge protector: JL819A or JL820A PSU: 1kV/2kV JL821A PSU: N/A
	Conducted	EN 61000-4-6 (3Vrms UTP, 10Vrms STP)
	Power Frequency Magnetic Field	EN 61000-4-8 (100A/m 1min,1000A/m 1sec)
	Damped Oscillatory Magnetic Field	EN 61000-4-10 (100A/m)
	Conducted CM Disturbances	EN 61000-4-16 (30V, Cont/300V, 1 sec)
	Ripple Immunity DC Power	EN 61000-4-17 (10%)
	Damped Oscillatory Wave	EN 61000-4-18 (2.5kV, 1MHz)
	Voltage Dips and interruptions	EN 61000-4-29; EN 61000-4-11 (Level 3)
	Harmonics	EN 61000-3-2, IEC 61000-3-2
	Flicker	EN 61000-3-3, IEC 61000-3-3
Dynamics	Vibration	IEC 60068-2-6 & 64 (operation & nonoperation)
	Shock	IEC 60068-2-27 (Operational Shock, 30G, 18ms, Half-Sine) IEC 60068-2-27 (Non-operational Shock, 50G, 11ms, Trapezoidal) IEC 60068-2-31 (Non-operational Free Fall, 100mm) IEC 60068-2-31 (Non-operational Topple)
	Railway Application	Compliance to EN 50155 (mounting) & IEC 61373

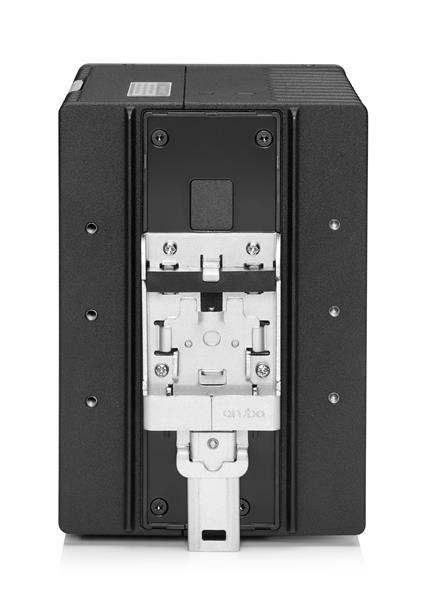

Mounting and Enclosure	Mounts to JL822A (3U DIN-to-Rack Bracket, puchased separately) which allows the switch to be mounted in an EIA/TIA standard 19" telco rack.
	Switch can be directly installed on a DIN rail mounted to a suitable surface to withstand the weight of the switch and power supplies.
	DIN rail mounting (included).
	Can be mounted in 90-degree manner to present the cables exiting the side of the switch - see installation guide for details.
Wire	Power Input	AWG 14 up to 2m
Wire	Alarm connector	AWG 18-16
PoE Budget	User configurable PoE budget - If 2 external power supply units are used concurrently, please set according to PSU with lower PoE capacity. JL819A Below ambient 50°C: 180W At ambient 60°C: 140W At ambient 70°C: 80W JL820A Below ambient 50°C: 360W At ambient 60°C: 320W At ambient 70°C: 200W JL821A With PSU input = 48V-55V DC Below ambient 50°C: 180W At ambient 60°C and 70°C: 150W With PSU input = 24V DC Below ambient 70°C: 150W With PSU input = 12V DC Below ambient 60°C: 60W At ambient 70°C: 50W Does not support PSU Power Sharing. Refer to Installation & Getting Started Guide for the PoE budget setup.
