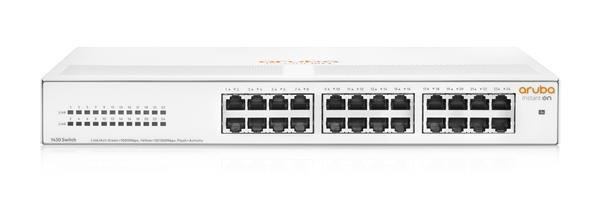

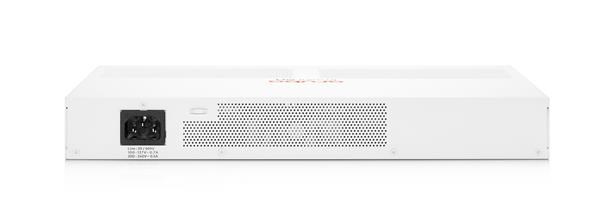

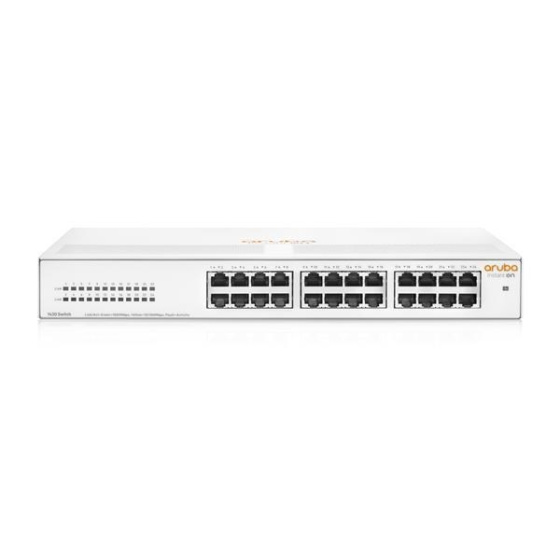

HPE Networking Instant On Switch 24p Gigabit 1430 R8R49A

Name: HPE Networking Instant On Switch 24p Gigabit 1430 R8R49A
Brand: Hewlett Packard Enterprise
SKU: 1881018
Price: 3892 CZK
Availability: InStock

Kód: 1881018

Skladem

Termín a způsob doručení

Hewlett Packard Enterprise

Provedení:Desktop, Rack mounted 19"; Funkce:QoS (Quality of service), L2; Technologie:Gigabit Ethernet 1000Mbps; Počet portů LAN:24; Počet portů LAN:24; Podporované standardy PoE:Žádný; PoE budget (W):0; Počet PoE Out portů:0; Počet PoE Out portů:0; Počet SFP portů:0; Počet SFP portů:0; Počet SFP+ portů:0; Počet SFP+ portů:0; Počet portů Combo:0.Více

Oblíbený

Porovnat

Vyberte si zvýhodněné balení

Množstevní slevy

Dotaz

Hlídat

Parametry

Výrobce:

Hewlett Packard Enterprise

Kód:

1881018

EAN:

190017602424

Záruka:

99 Doživotní

Stav:

Maximální počet portů:

Provedení:

Desktop, Rack mounted 19"

Technologie:

Gigabit Ethernet 1000Mbps

Management:

Počet portů LAN:

Ventilátor:

Přenosová rychlost LAN (Mb/s):

Funkce:

QoS (Quality of service), L2

Podporované standardy PoE:

Žádný

PoE budget (W):

Počet portů LAN:

Maximální počet portů:

Popis HPE Networking Instant On Switch 24p Gigabit 1430 R8R49A

Naposledy navštívené produkty

HPE Networking Instant On Switch 24p Gigabit 1430 R8R49A

Aruba Instant On 1430 24G Switch (R8R49A)
I/O ports and slots		24 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only
Physical Characteristics
Dimensions		225(d) x 340(w) x 44(h) mm
Weight		4.20 lb (1.91 kg)
Processor and Memory		128Kb EEPROM; Packet buffer size: 2.0 Mb
Performance
100 Mb latency		< 2.7 µSec
1000 Mb latency		< 1.80 µSec
Throughput (Mpps)		35.71 Mpps
Capacity		48 Gbps
MAC address table size		8192 entries
Reliability MTBF (years)		199.5
Environment
Operating temperature		32°F to 104°F (0°C to 40°C)
Operating relative humidity		15% to 95% @ 104°F (40°C) non-condensing
Nonoperating/ storage temperature		-40°F to 158°F (-40°C to 70°C) up to 15000 ft
Nonoperating/ storage relative humidity		15% to 90% @ 149°F (65°C) non-condensing
Altitude		up to 10,000 ft (3 km)
Acoustics		Fanless
Electrical Characteristics
Frequency		50Hz/60Hz
AC voltage		100-127VAC / 200- 240VAC
Current		0.3A / 0.2A
Maximum power rating		11.7W
Idle power		3.2W
PoE power		-
Power Supply		Internal Power Supply
Safety		EN/IEC 60950- 1:2006 + A11:2009 + A1:2010 + A12:2011 + A2:2013 EN/IEC 62368-1, 2nd. & 3rd. Ed. UL 62368-1, 3rd. Ed. CAN/CSA C22.2 No. 62368-1, 3rd. Ed. EN/IEC 60825- 1:2014 Class 1
Emissions		EN 55032:2015/ CISPR 32, Class A FCC CFR 47 Part 15: 2018, Class A ICES-003, Class A VCCI-32, Class A CNS 13438, Class A KS C 9832, Class A AS/NZS CISPR 32, Class A
Immunity		BS/EN 55035, CISPR 35, KS C 9835
Generic		EN 55035, CISPR 35
EN		EN/IEC 61000-4-2
ESD		EN/IEC 61000-4-3
Radiated		EN/IEC 61000-4-4
EFT/Burst		EN/IEC 61000-4-5
Surge		EN/IEC 61000-4-6
Conducted		EN/IEC 61000-4-8
Power frequency magnetic field		EN/IEC 61000-4-11
Voltage dips and interruptions		EN/IEC 61000-3-2
Harmonics		EN /IEC 61000-3-3
Device Management		Unmanaged
Mounting
Mounting positions and supported racking		Mounts in an EIA standard 19 in telco rack or equipment cabinet. 2-post rack kit included Supports table-top mounting Supports rack-mounting using the brackets provided Supports wall-mounting with ports facing either up or down using either the base surface mounting holes, or the brackets provided Supports under-table mounting using the brackets provided Must be mounted top surface up. To prevent possible impact to long-term reliability, product should not be mounted upside-down
Transceivers
