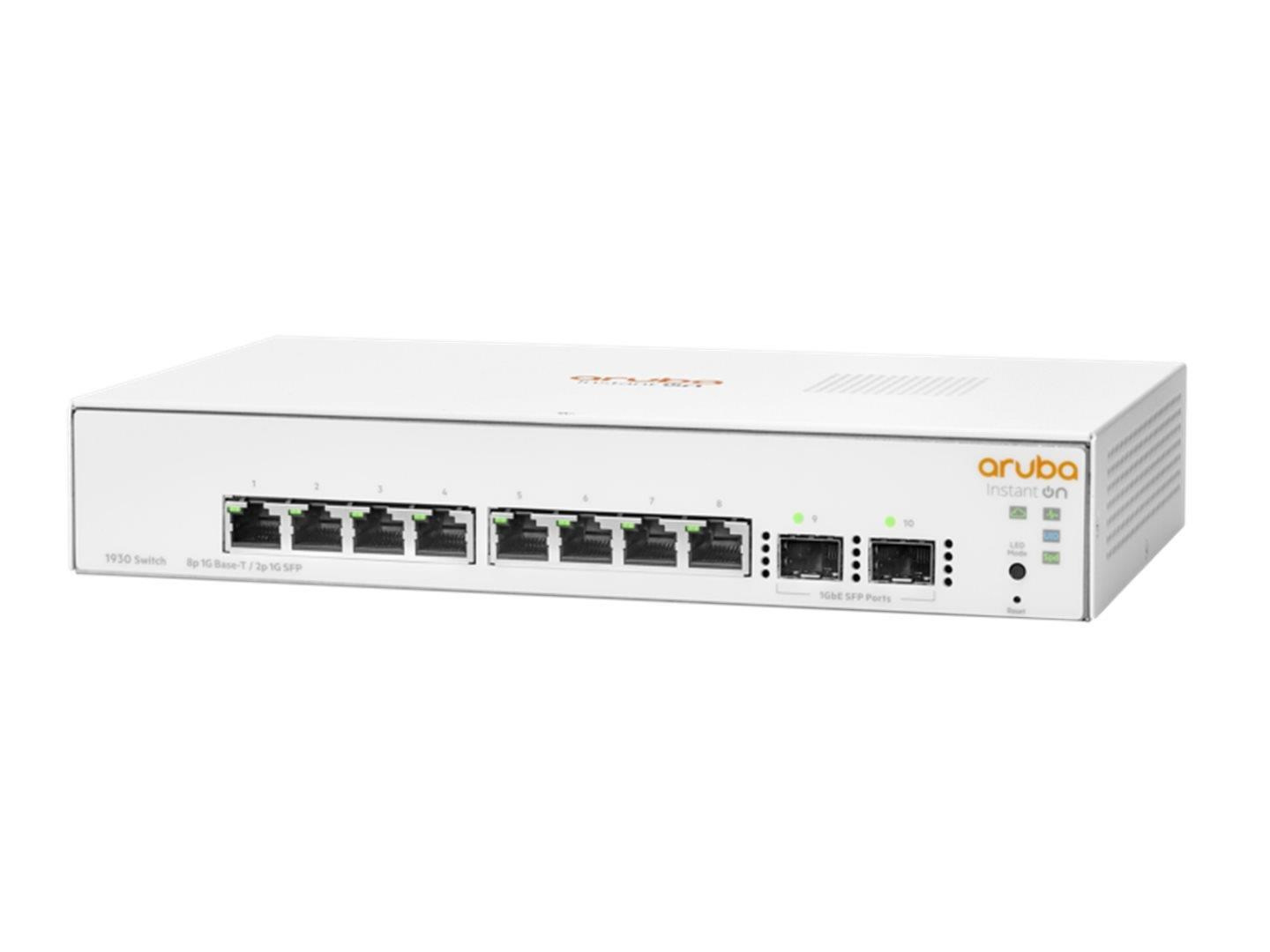

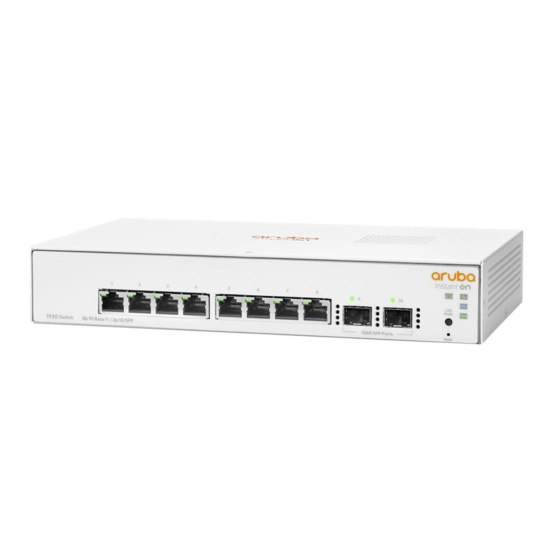

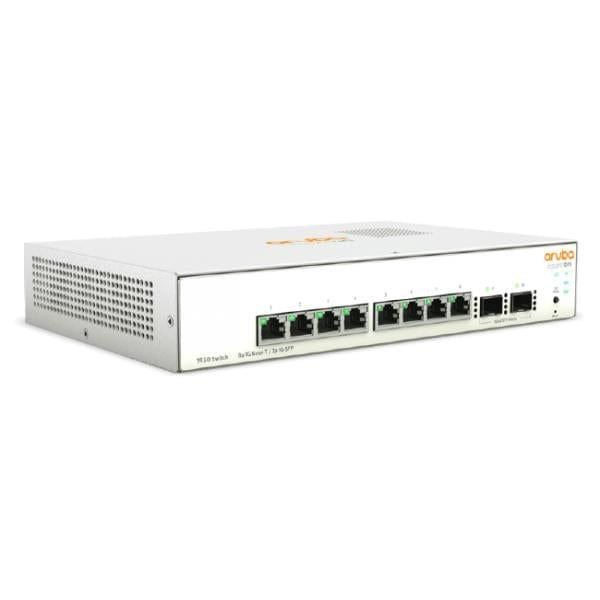

HPE Networking Instant On Switch 8p Gigabit 2p SFP (fanless) 1930

Name: HPE Networking Instant On Switch 8p Gigabit 2p SFP (fanless) 1930
Brand: Hewlett Packard Enterprise
SKU: 713964
Price: 3871 CZK
Availability: InStock

Kód: 713964

Skladem

Termín a způsob doručení

Hewlett Packard Enterprise

Provedení:Desktop; Funkce:VLAN (virtual local area network), L2; Technologie:Gigabit Ethernet 1000Mbps, 10 Gigabit optika, Gigabit ethernet + Gigabit optika, Gigabit optika; Počet SFP portů:2; Počet SFP+ portů:0; Počet portů SFP28:0; Počet portů QSFP28:0; Počet portů QSFP+:0; Maximální počet portů:8; Propustnost (Mp/s):14.88; Přepínací kapacita (Gb/s):20.Více

Oblíbený

Porovnat

Vyberte si zvýhodněné balení

Množstevní slevy

Dotaz

Hlídat

Parametry

Výrobce:

Hewlett Packard Enterprise

Kód:

713964

EAN:

190017355030

Záruka:

99 Doživotní

Stav:

Maximální počet portů:

Provedení:

Desktop

Technologie:

Gigabit ethernet + Gigabit optika, 10 Gigabit optika, Gigabit Ethernet 1000Mbps, Gigabit optika

Management:

SNMP/RMON

Vlastnosti switche:

Rozšiřitelnost

Ventilátor:

Přenosová rychlost LAN (Mb/s):

16.5

Funkce:

L2, VLAN (virtual local area network)

Počet SFP portů:

Maximální počet portů:

Přepínací kapacita (Gb/s):

Propustnost (Mp/s):

14,88

Popis HPE Networking Instant On Switch 8p Gigabit 2p SFP (fanless) 1930

Naposledy navštívené produkty

HPE Networking Instant On Switch 8p Gigabit 2p SFP (fanless) 1930

TRITON Podstavec 600x800, šedý

19" záslepka do rozvaděče LEXI-Net 1U, černá

TRITON Podstavec 800x800, šedý

JL680A - Aruba Instant On 1930 8G 2SFP Switch
Porty	8 RJ-45 10/100/1000, 2 SFP 1GbE ports
Paměť a procesor	ARM Cortex-A9 @ 800 MHz 512 MB SDRAM, 256 MB flash 1.5 MB packet buffer
Propustnost	14.88 Mpps, maximum
Přepínací kapacita	20 Gbps
Funkce pro správu	Aruba Instant On Portal, Web browser, SNMP Manager
Vstupní napětí	100 - 240 VAC
Spotřeba energie	11.0 W maximum, , 6.2 W idle
Rozměry	4.39 x 25.4 x 15.95 cm
Váha	0.82 kg
PoE	-

Aruba Instant On 1930 8G 2SFP Switch (JL680A)
I/O Ports and Slots	8 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE- TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 2 SFP 1GbE ports
Physical Characteristics	Dimensions	10(w) x 6.28(d) x 1.73(h) in (25.4 x 15.95 x 4.39 cm) (1U height)
Physical Characteristics	Weight	2.55 lb (0.82 kg)
Processor and Memory	ARM Cortex-A9 @ 800 MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5 MB
Packet Buffer	1.5 MB
Performance	100 Mb latency	< 5.2 uSec
	1000 Mb latency	<3.0 uSec
	10000 Mb latency	n/a
	Throughput (Mpps)	14.88 Mpps
	Capacity	20 Gbps
	Routing table size (# of static entries)	32
	MAC address table size (# of entries)	8,000
	Reliability MTBF (years)	178
Environment	Operating temperature	32°F to 104°F (0°C to 40°C)
	Operating relative humidity	15% to 95% @ 104°F (40°C)
	Non-operating temperature	-40°F to 158°F (-40°C to 70°C)
	Non-operating relative humidity	15% to 95% @ 140°F (60°C)
	Altitude	Up to 10,000ft (3.048 Km)
	Acoustic¹	Fanless
	Notes: ¹Acoustics measured in 23°C semi-anechoic chamber with a loading of 100% traffic and 50% PoE on all ports. Measured in accordance with ISO 7779. Declared in accordance with ECMA-109:2010. Values presented are the Declared A-Weighted Sound Power Level (LWAd) and the mean Bystander A-Weighted Sound Pressure Level (LpAm)
Electrical Characteristics	Frequency	50-60 Hz
	AC voltage	100-240V
	Current	0.2 A
	Maximum power rating	11.0 W
	Idle power	6.2 W
	PoE power	n/a
	Power supply	External power adapter (included)
Safety	UL 60950-1; IEC 60950-1;EN 60950-1; CAN/CSA-C22.2 No. 60950-1; EN 60825-1 UL 62368-1 Ed. 2; IEC 62368-1 Ed. 2; EN 62368-1:2014
Emissions	VCCI-CISPR 32, Class A; CNS 13438; ICES-003 Issue 6 Class A; FCC CFR 47 Part 15, Class A; EN 55032: 2015 +AC:2016 / CISPR-32, Class A
Immunity	Generic	CISPR 24 / CISPR 35
	EN	EN 55024:2010 / EN 55035:2017
	ESD	IEC 61000-4-2
	Radiated	IEC 61000-4-3
	EFT/Burst	IEC 61000-4-4
	Surge	IEC 61000-4-5
	Conducted	IEC 61000-4-6
	Power frequency magnetic field	IEC 61000-4-8
	Voltage dips and interruptions	IEC 61000-4-11
	Harmonics	IEC 61000-3-2, EN 61000-3-2
	Flicker	IEC 61000-3-3, EN 61000-3-3
Device Management	Aruba Instant On Cloud; Web browser; SNMP Manager
Mounting	Supports table-top mounting Supports wall-mounting with ports facing either up or down Supports under-table mounting using base surface mounting holes
Transceivers
	Aruba Instant On 1G SFP LC SX 500m OM2 MMF Transceiver (R9D16A ) Aruba 1G SFP LC LX 10km SMF Transceiver (J4859D) Aruba Instant On 1G SFP RJ45 T 100m Cat5e Transceiver (R9D17A)

HPE Networking Instant On Switch 8p Gigabit 2p SFP (fanless) 1930

Aruba Instant On 1930
