ASUS MB Sc AM4 PRIME A520M-A II CSM, AMD A520, 4xDDR4, 1xDP, 1xHDMI, 1xVGA, mATX
Kód: 1887088Skladem
Termín a způsob doručení
Formát základní desky:micro ATX; Chipset:AMD A520, Intel; Socket (patice):Socket AM4; Pro procesory:AMD; Technologie paměti RAM:DDR4; Počet paměťových slotů:4; M.2 slot:1; SATA 3:4; Podpora RAID:0, 1, 10; PCI Express x16:1; PCI Express x1:2; PCI:0; LAN:1Gbit/s; Bezdrátové připojení:bez; DisplayPort:1; HDMI:1; VGA:1; DVI:0; USB 2:6; USB 3:6; USB C:0.Více
Vyberte si zvýhodněné balení
Množstevní slevy
/envelope.svg){kind=small}
Dotaz
/bell.svg){kind=small}
Hlídat
/share.svg){kind=small}
Sdílet
Parametry
Výrobce:
Kód:
1887088
EAN:
4711081135395
Záruka:
36 Měsíc(ů)
Stav:
Technologie paměti RAM:
DDR4
Socket (patice):
Socket AM4
Formát základní desky:
micro ATX
Chipset:
Intel, AMD A520
PCI Express x16:
1
Podpora RAID:
10, 1
COM port:
Ano
LPT port:
Ne
Pro procesory:
AMD
Počet paměťových slotů:
4
3.5mm Jack:
Ano
LAN:
1Gbit/s
DisplayPort:
1
Bezdrátové připojení:
bez
Led Header:
Ano
TPM:
Ano
PCI Express x1:
2
USB 2:
6
USB 3:
6
M.2 slot:
1
SATA 3:
4
VGA:
1
HDMI:
1
Popis ASUS MB Sc AM4 PRIME A520M-A II CSM, AMD A520, 4xDDR4, 1xDP, 1xHDMI, 1xVGA, mATX

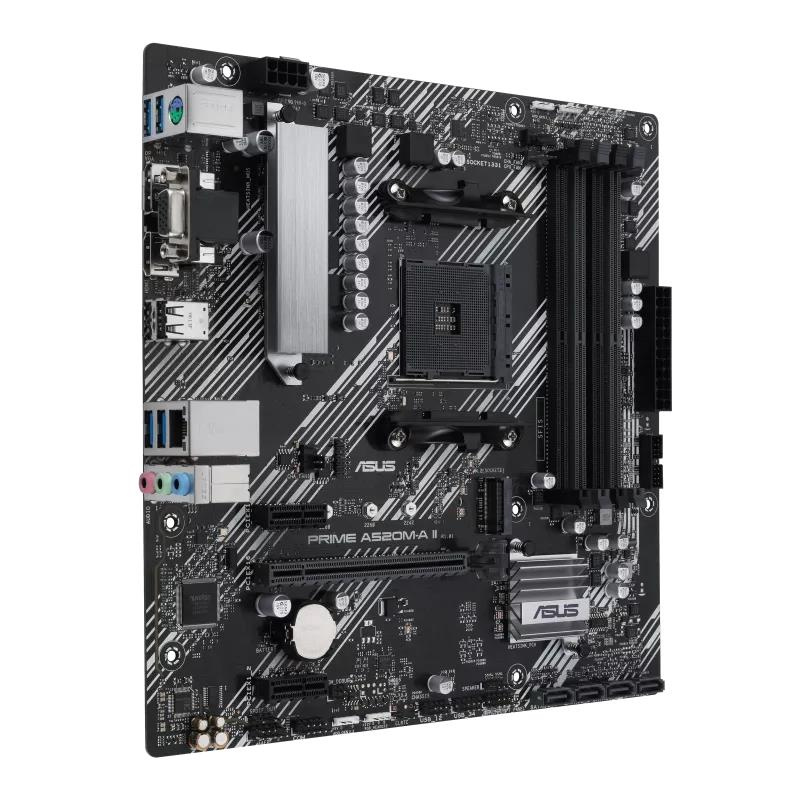

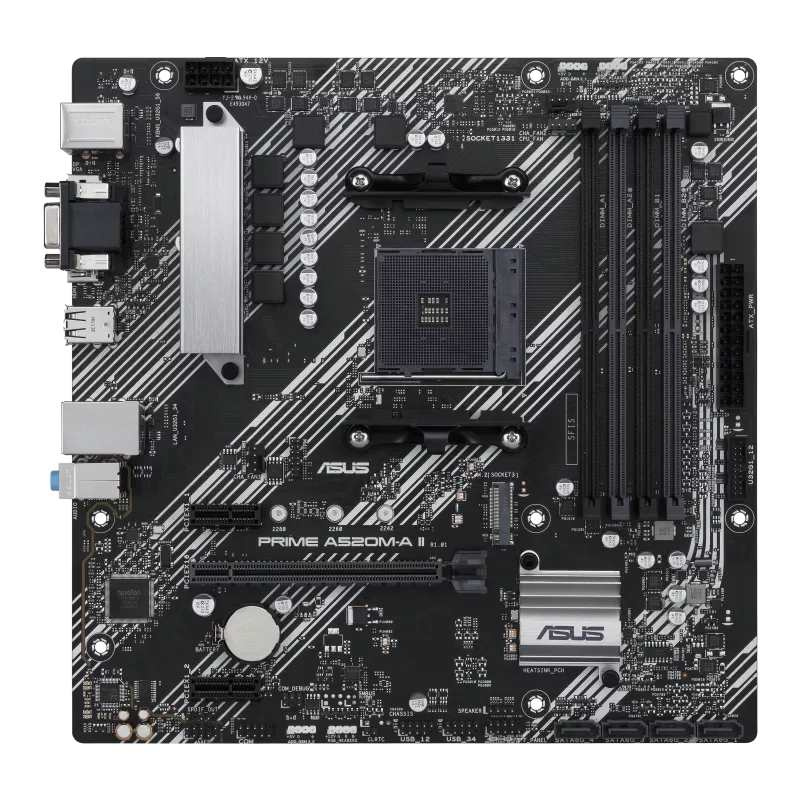

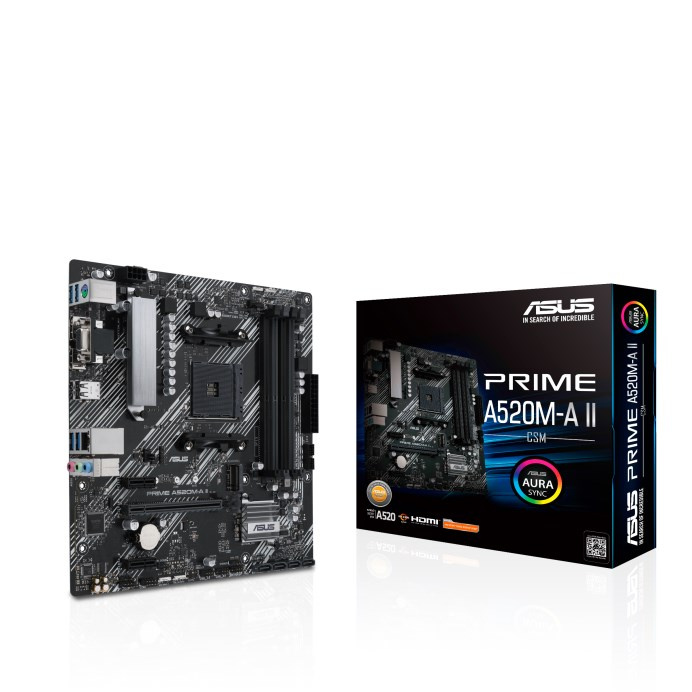

ASUS PRIME A520M-A II/CSM
AMD A520 (Ryzen AM4) micro ATX motherboard with M.2, DP, HDMI,D-Sub, SATA 6 Gbps, USB 3.2 Gen 1 ports, and Aura Sync RGB lighting support
- AMD AM4 socket: Ready for Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
- Comprehensive cooling: VRM heatsink, PCH heatsink, and Fan Xpert 2+
- Ultrafast connectivity: M.2 support,1 Gb Ethernet, USB 3.2 Gen 1 Type-A
- Aura Sync RGB: Onboard RGB headers and addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware
- ASUS Control Center Express (ACCE) for easier IT endpoint management
CPU
AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
*Refer to www.asus.com for CPU support list.
Chipset
AMD A520
Memory
4x DDR4 4800(OC)/4600(OC)/4466(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/3000/2800/2666/2400/2133 MHz, Un-buffered Memory*
Dual Channel Memory Architecture
*ECC Memory (ECC mode) support varies by CPU.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
Graphics
1x Display Port
1x D-Sub
1x HDMI
Expansion Slots
AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
1 x PCIe 3.0 x16 slot (supports x16 mode)
AMD A520 Chipset
2 x PCIe 3.0 x1 slots
Storage
Supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series Desktop Processors
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
AMD A520 Chipset
4 x SATA 6Gb/s ports
Support Raid 0, 1, 10
Ethernet
1 x Realtek 1Gb Ethernet
USB
Rear USB:Total 6 ports
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB:Total 6 ports
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Audio
Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC*
- Supports : Jack detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback"
Audio Features
- Audio Shielding
- Premium Japanese audio capacitors
- Dedicated audio PCB layers
*A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

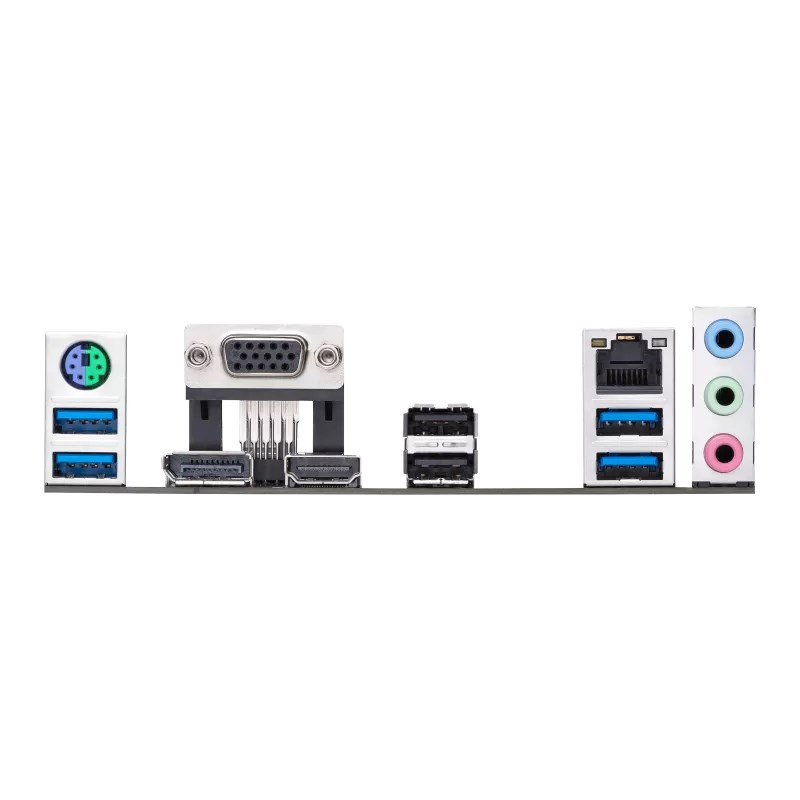

Back Panel I/O Ports
4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x HDMITM port
1 x D-Sub
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors
Fan and cooling related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
2 x AURA Addressable Gen 2 header
2 x AURA RGB headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header
Special Features
ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core
- Stainless-Steel Back I/O
ASUS Q-Design
- ASUS Q-DIMM
- ASUS Q-Slot
ASUS Thermal Solution
- VRM heatsink design
AURA Sync
- AURA RGB headers
- Addressable Gen 2 RGB headers
Software Features
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
Digi+ VRM
Fan Xpert 2+
- EZ update
ASUS CPU-Z
AI Charger
DAEMON Tools
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
BIOS
128 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O Shield
1 x M.2 SSD screw package
Installation Media
1 x Support DVD
Documentation
1 x User manual
Operating System
Windows 10 64bit
Form Factor
microATX
24.4cm x 24.4cm
