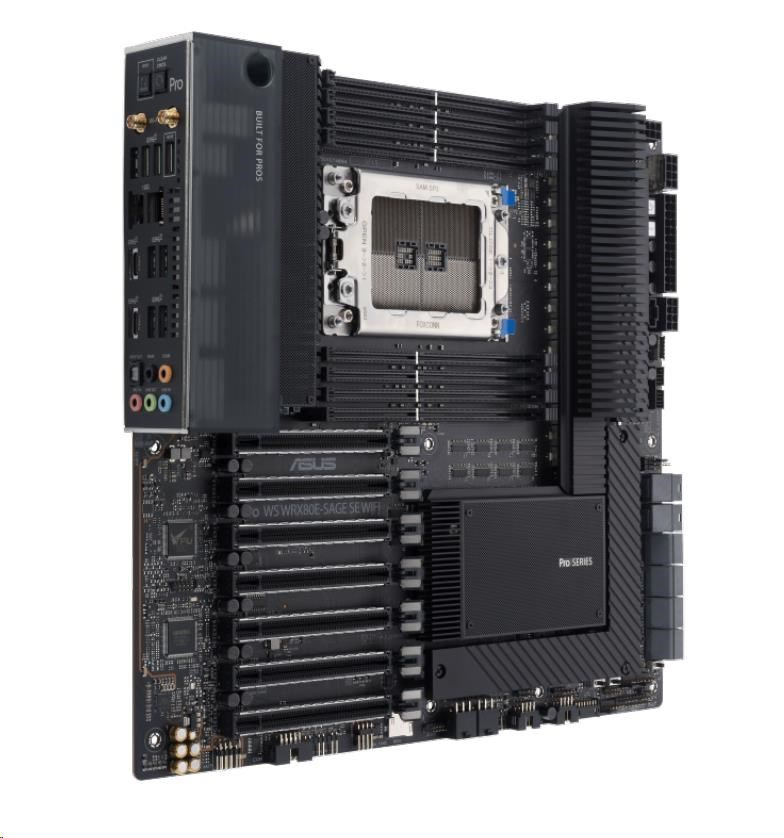

ASUS MB Sc sWRX8 PRO WS WRX80E-SAGE SE WIFI, AMD WRX80, 8xDDR4, WI-FI, E-ATX
Kód: 431393Skladem
Termín a způsob doručení
Formát základní desky:EEB; Chipset:AMD WRX80, AMD; Socket (patice):Socket WRX8; Pro procesory:AMD; Technologie paměti RAM:DDR4; Počet paměťových slotů:8; M.2 slot:3; SATA 3:8; PCI Express x16:7; PCI Express x1:0; PCI:0; LAN:10Gbit/s; Bezdrátové připojení:Wi-Fi, WiFi + Bluetooth; DisplayPort:0; HDMI:0; VGA:0; DVI:0; USB 2:4; USB 3:10; USB C:3; COM port.Více
Vyberte si zvýhodněné balení
Množstevní slevy
/envelope.svg){kind=small}
Dotaz
/bell.svg){kind=small}
Hlídat
/share.svg){kind=small}
Sdílet
Parametry
Výrobce:
Kód:
431393
EAN:
4711081066262
Záruka:
36 Měsíc(ů)
Stav:
Technologie paměti RAM:
DDR4
Socket (patice):
Socket WRX8
Formát základní desky:
EEB
Chipset:
AMD, AMD WRX80
PCI Express x16:
7
COM port:
Ano
LPT port:
Ne
Pro procesory:
AMD
Počet paměťových slotů:
8
3.5mm Jack:
Ano
LAN:
10Gbit/s
Bezdrátové připojení:
Wi-Fi, WiFi + Bluetooth
Led Header:
Ne
TPM:
Ano
USB 2:
4
USB 3:
10
USB C:
3
M.2 slot:
3
SATA 3:
8
Popis ASUS MB Sc sWRX8 PRO WS WRX80E-SAGE SE WIFI, AMD WRX80, 8xDDR4, WI-FI, E-ATX

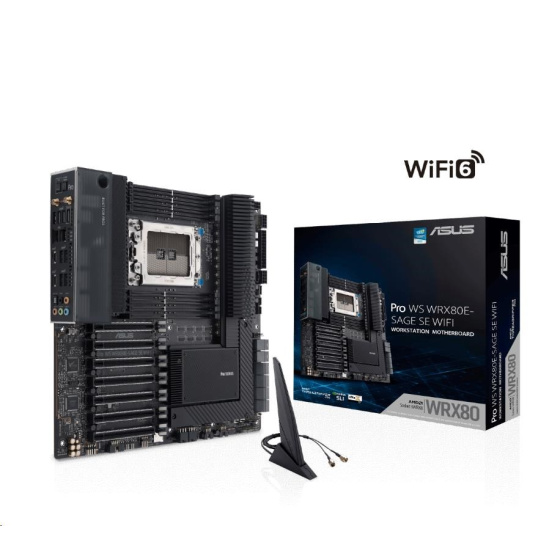

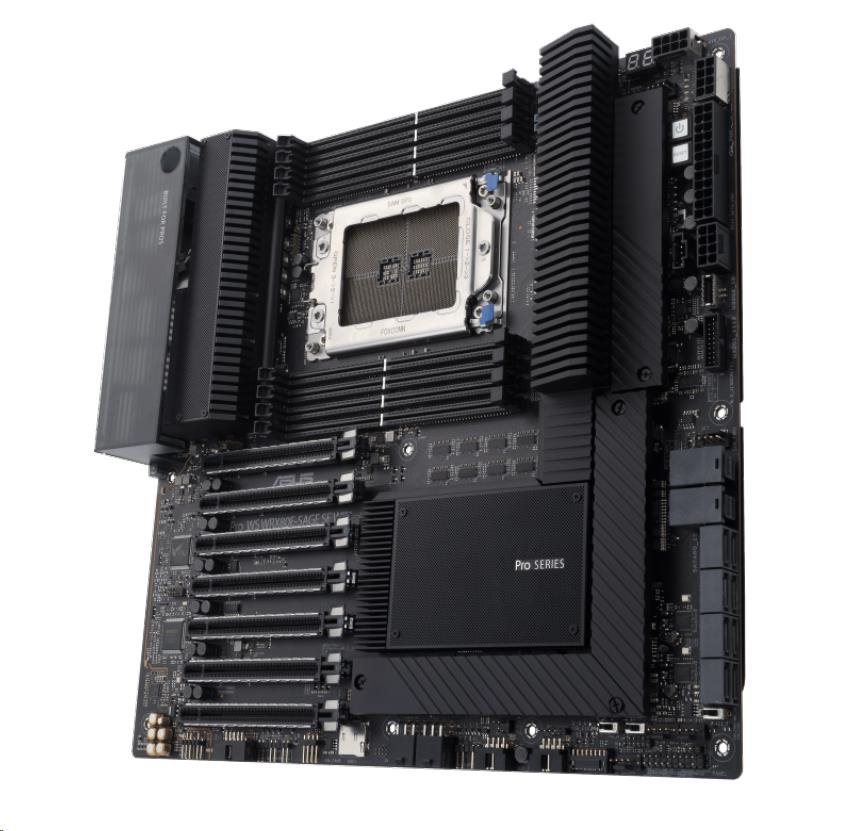

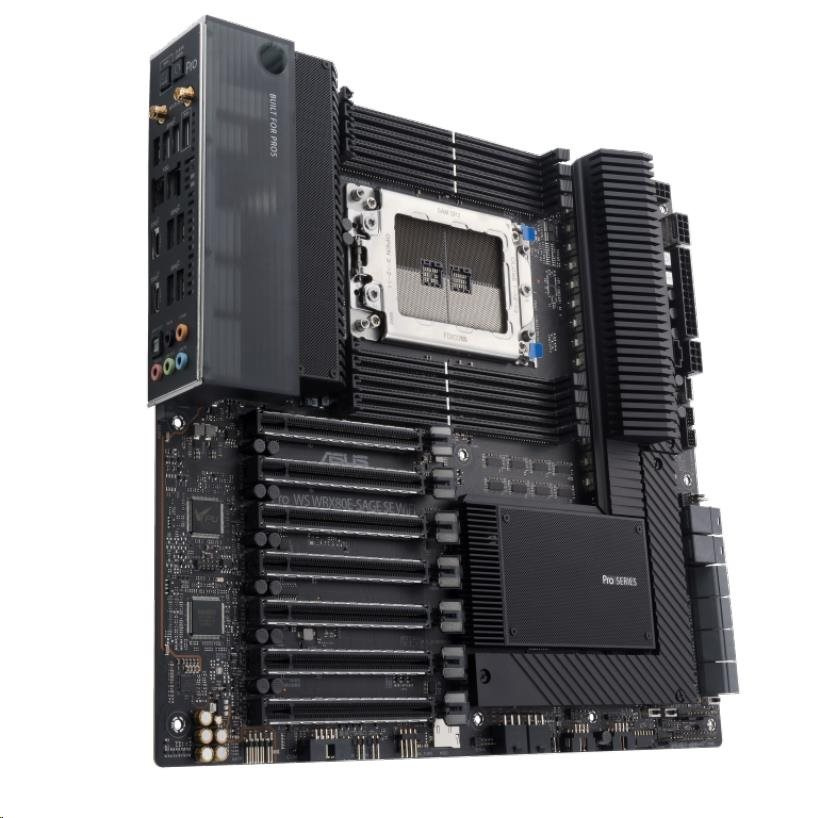

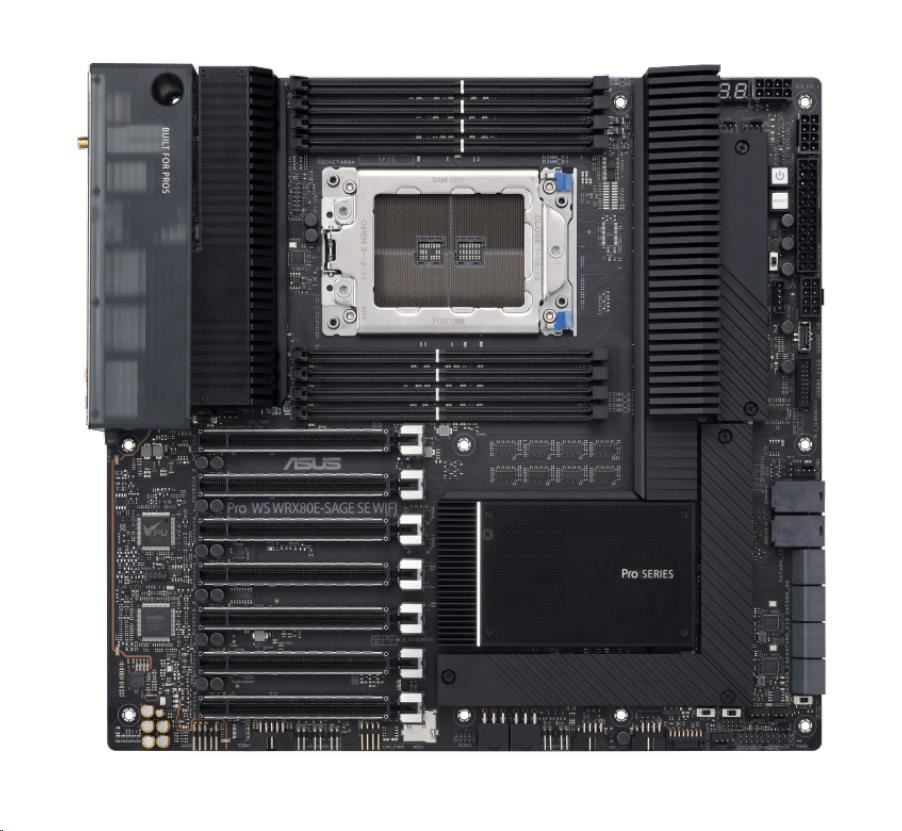

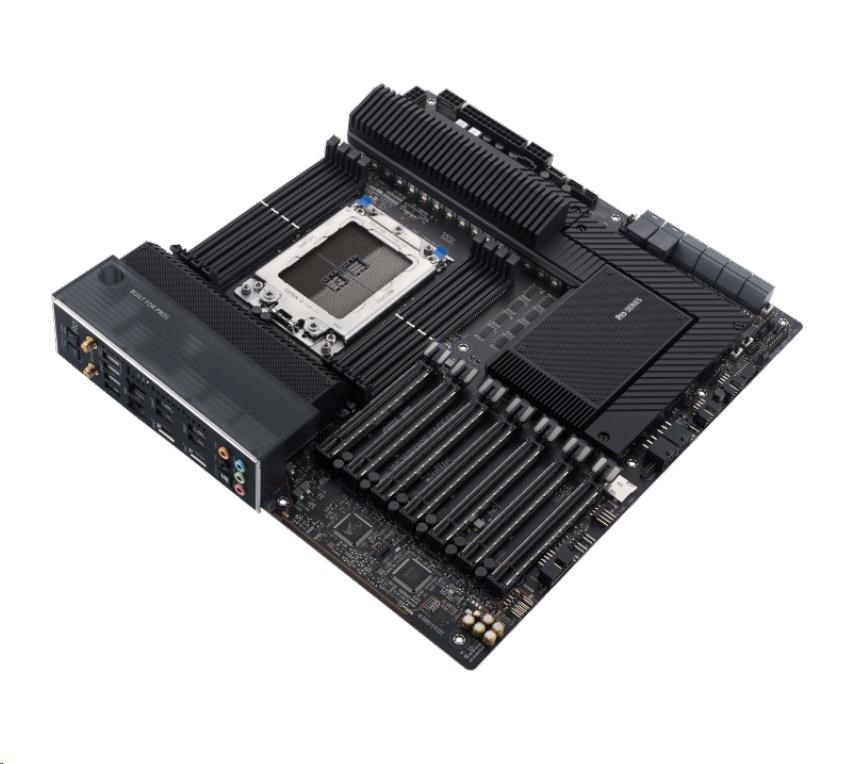

Pro WS WRX80E-SAGE SE WIFI
AMD WRX80 Ryzen™ Threadripper™ PRO extended-ATX workstation motherboard with Intel dual 10 G LAN, USB 3.2 Gen 2x2 Type-C port, 7 x PCIe 4.0 x16 slots, 3 x M.2 PCIe 4.0, ASMB9-iKVM, 2 x U.2 and 16 power stages
- AMD sWRX8 socket: Ready for AMD Ryzen™ Threadripper™ PRO Series Processors
- Ultrafast connectivity: USB 3.2 Gen 2x2 Type-C port, 10 x USB 3.2 Gen 2 ports, 3 x M.2 PCIe 4.0, HYPER M.2 x16 Gen 4 card and Intel® X550-AT2 dual 10Gb Ethernet
- ASMB9-iKVM remote management: BMC chip to provide intelligence for its IPMI architecture for out-of-band management to enhance hardware-level control for improved IT efficiency
- Powerful performance: 16 power stages, multi-GPU support and R-DIMM memory support
- Trusted stability: Tested for 24/7 dependability, validated for solid compatibility and equipped with SafeSlot for ultimate security
CPU
AMD® Ryzen™ Threadripper™ Pro Processors*
* Refer to www.asus.com for CPU support list.
Chipset
AMD WRX80 Chipset
Memory
Memory Channels:8DDR4 (Eight Channel)
Max Memory Size:2048GB
8 x DIMM, Max. 2048GB, DDR4 3200/3000/2933/2800/2666/2400/2133 MHz ECC and Non-ECC, buffered and Un-buffered, U-DIMM, R-DIMM and 3DS R-DIMM Memory*
8 Channel Memory Architecture
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Expansion Slots
AMD Ryzen™ Threadripper™ PRO Series Processors
7 x PCIe 4.0/3.0 x16 slot(s)*
* Support PCIe bandwidth bifurcation for RAID on CPU function.
Multi-GPU Support
Supports NVIDIA 4-Way/3-Way/2-Way SLI® Technology
Storage
Supports 3 x M.2 slots and 12 x SATA 6Gb/s ports
AMD Ryzen™ Threadripper™ PRO Series Processors
M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
U.2_1 slot supports U.2 NVMe device and up to 2 SATA devices*
AMD WRX80 Chipset
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
U.2_2 slot supports U.2 NVMe device and up to 2 SATA devices*
4 x SATA 6Gb/s ports
ASMedia ASM1061 Controller
4 x SATA 6Gb/s ports
Supports NVMe RAID configurations via M.2 storages
*The U.2_1 slot shares bandwidth with M.2_2, U.2_2 slot shares bandwidth with M.2_3. When M.2_2 slot is being populated, U.2_1 slot will be disabled. When M.2_3 slot is being populated, U.2_2 slot will be disabled.
Ethernet
1 x Intel® X550-AT2 dual 10Gb Ethernet
ASUS LANGuard
Wireless & Bluetooth
Intel® Wi-Fi 6 AX200
2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO
Supports up to 2.4Gbps max data rate
Supports 2.4/5GHz Dual-Band
Supports channel bandwidth: HT20/HT40/HT80/HT160
Supports PCIe interface
Bluetooth v5.1
USB
Rear USB:Total 10 ports
1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®)
9 x USB 3.2 Gen 2 port(s) (8 x Type-A + 1 x USB Type-C®)
Front USB:Total 7 ports
1 x USB 3.2 Gen 2 connector(s) (suppport(s) USB Type-C®)
1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
Audio
Relatek ALC4080 7.1 Surround Sound High Definition Audio CODEC
- Impedance sense for front and rear headphone outputs
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- Supports up to 32-Bit/384 kHz playback"
Audio Features
- Audio Shielding
- Power pre-regulator reduces power input noise to ensure consistent performance
- Rear optical S/PDIF out port
- Premium Japanese audio capacitors
- Dedicated audio PCB layers
- Unique de-pop circuit

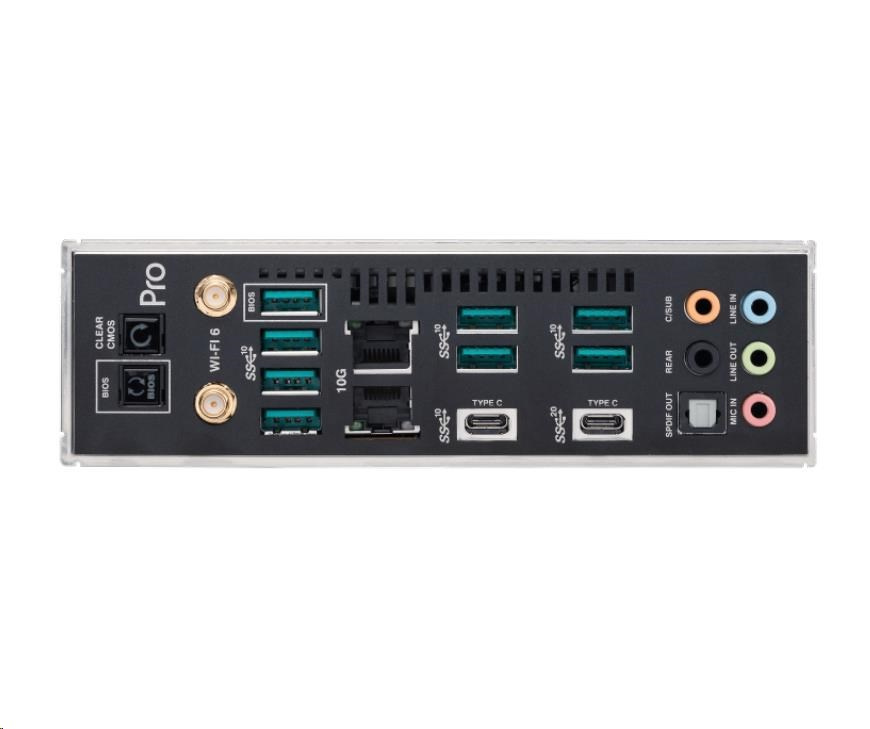

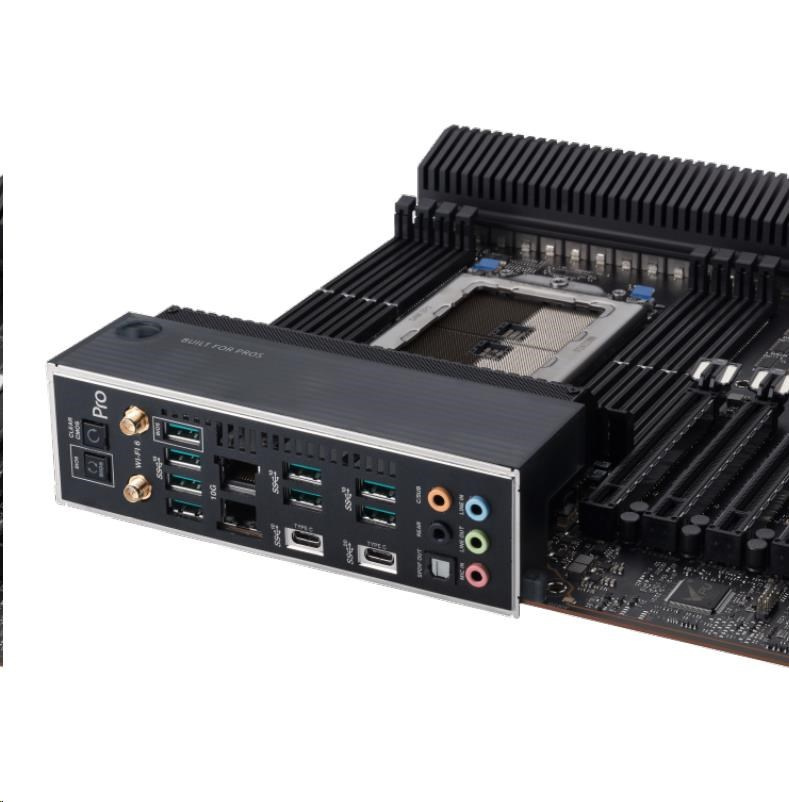

Back Panel I/O Ports
1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C®)
9 x USB 3.2 Gen 2 port(s) (8 x Type-A+ 1 x USB Type-C®)
1 x ASUS Wi-Fi Module
2 x Intel® X550-AT2 dual 10Gb Ethernet ports
5 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button
1 x Clear CMOS button
Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header(s)
1 x 4-pin CPU OPT Fan header(s)
6 x 4-pin Chassis Fan header(s)
1 x VRM heatsink Fan header
1 x Chipset Fan header
Power related
1 x 24-pin Main Power connector
2 x 8-pin +12V Power connector
2 x 6-pin PCIe Graphics Card connector
1 x 8-pin PCIe Power connector
Storage related
3 x M.2 slots (Key M)
8 x SATA 6Gb/s ports
2 x U.2 slots
USB
1 x USB 3.2 Gen 2 connector (support(s) USB Type-C®)
1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
BMC Related
1 x BMC switch
1 x IPMI switch
1 x Messange LED header
1 x Micro SD card socket
2 x LAN LED header(s)
1 x Location LED header
1 x Location button header
1 x PSU_SMB header
1 x SMART_PSU switch
1 x VGA switch
1 x VGA header
1 x VPP_I2C header
Miscellaneous
1 x COM Port header
1 x FlexKey button
1 x Front Panel Audio header (AAFP)
1 x SPI TPM header (14-1pin)
1 x Start button
1 x 20-3 pin System Panel header with Chassis intrude function
1 x RTC Battery header
1 x Thermal Sensor header
Special Features
ASUS Q-Design
- Q-Code
- Q-Connector
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
Bespoke Motherboard Design & Business Focused Features
- Event Log in ASMB9-iKVM
- 24/7 Reliability
- Overcurrent Protection
ASMB9-iKVM for KVM-over-Internet
Software Features
ASUS Exclusive Software
Armoury Crate
ASUS CPU-Z
AI Charger
ASUS Turbo LAN
DAEMON Tools
DTS:X® Ultra
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
Cables
6 x SATA 6Gb/s cables
1 x VGA cable
Miscellaneous
1 x ASUS 2x2 Dual-Band Wi-Fi moving antennas

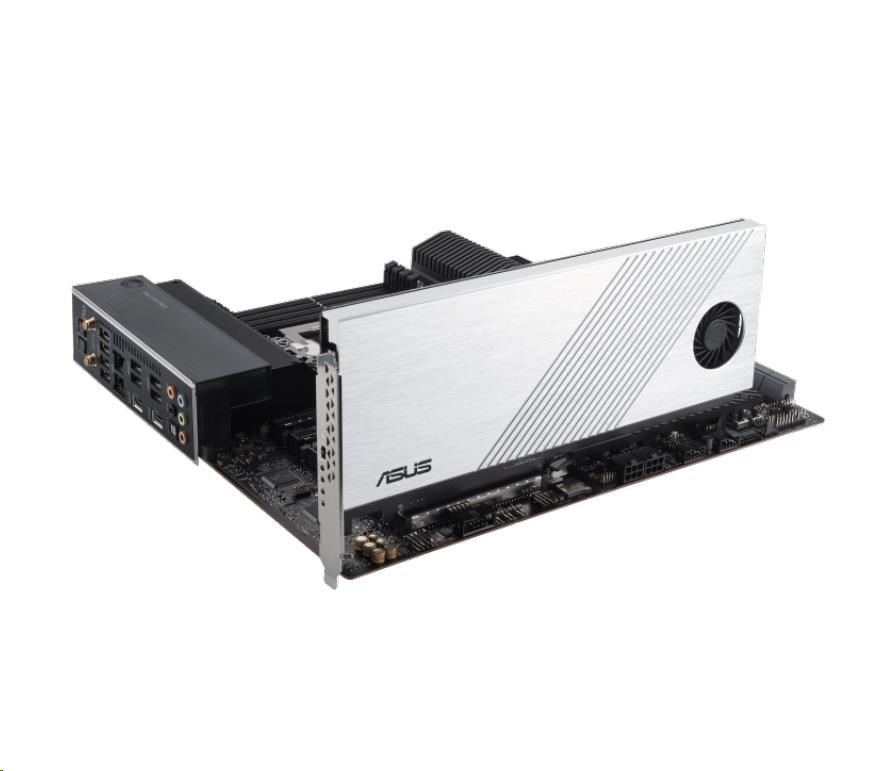

1 x Hyper M.2 X16 Gen 4 Card
3 x M.2 Rubber Package(s)
3 x M.2 SSD screw package(s)
1 x Q-connector
Installation Media
1 x Support DVD
Documentation
1 x User manual
Operating System
Windows 10 64bit
Form Factor
Extended ATX
30.98 x 33.02cm
