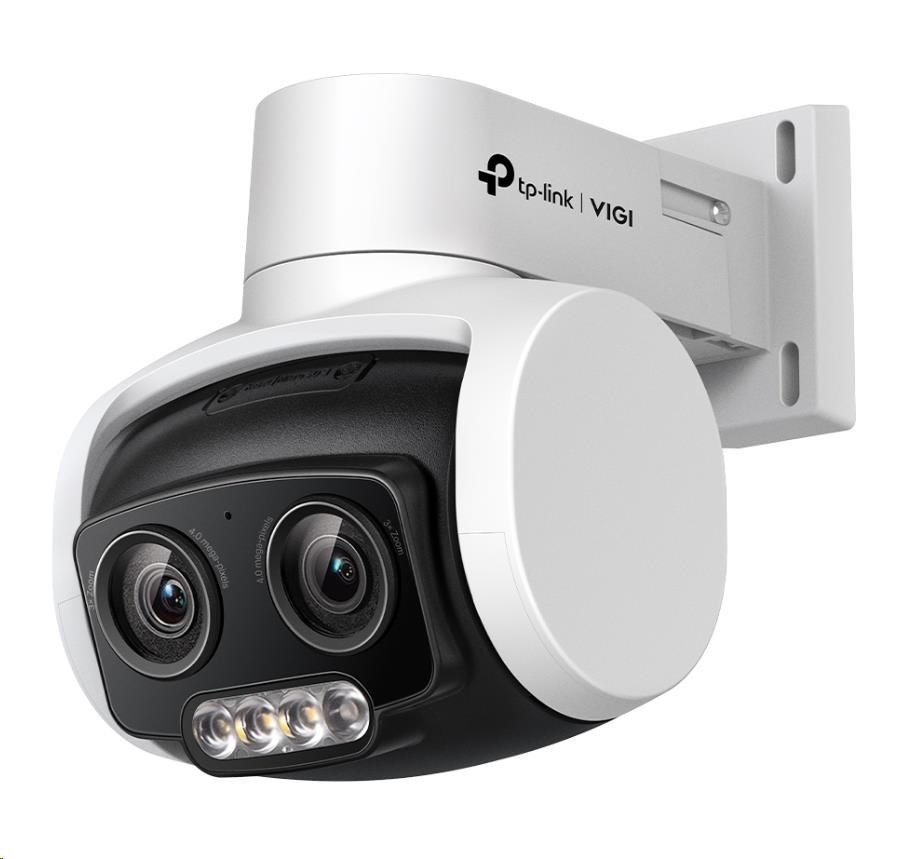

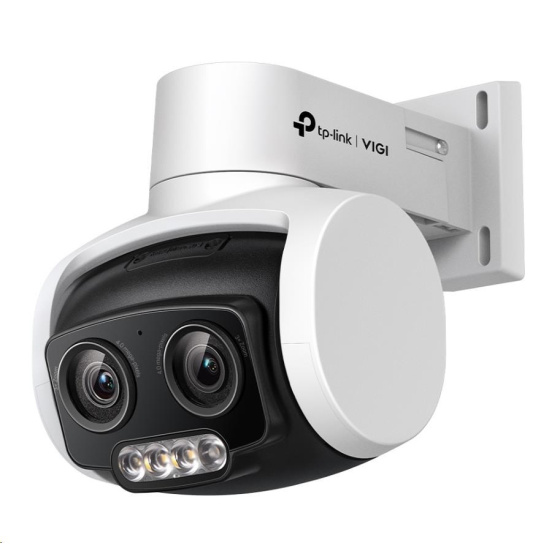

TP-Link VIGI C540V, 4MP, PTZ, PoE, 3xZoom, Dual Lens, IR 30m, Micro SD card

Name: TP-Link VIGI C540V, 4MP, PTZ, PoE, 3xZoom, Dual Lens, IR 30m, Micro SD card
Brand: TP-link
SKU: 438900
Price: 3388 CZK
Availability: InStock

Kód: 438900

Skladem

Termín a způsob doručení

TP-link

Technologie:IP kamery; Provedení:PTZ (Speed dome); Paměťová karta; Použití:Venkovní; Typ objektivu:Zoom; Rozlišení (MPx):4; Ohnisková vzdálenost (mm):4,24-12,66; Počet snímků (fps):30; I/O:Vestavěný mikrofon, Vestavěný reproduktor, Alarm, Audio; Napájení:PoE, PoE+; Spotřeba (W):10-20; IR/LED přísvit (m):30; IR/LED přísvit (m):30; Stupeň krytí IP:IP66.Více

Oblíbený

Porovnat

Vyberte si zvýhodněné balení

Množstevní slevy

Dotaz

Hlídat

Parametry

Výrobce:

TP-link

Kód:

438900

EAN:

4895252500837

Záruka:

36 Měsíc(ů)

Stav:

Ohnisková vzdálenost (mm):

4,24-12,66

IR/LED přísvit (m):

Technologie:

IP kamery

Typ objektivu:

Zoom

Spotřeba (W):

10-20

Provedení:

PTZ (Speed dome)

Použití:

Venkovní

Paměťová karta:

Ano

Napájení:

PoE, PoE+

I/O:

Vestavěný mikrofon, Vestavěný reproduktor, Alarm, Audio

Stupeň krytí IP:

IP66

Kódování:

H.265+, H.264, H.264+, H.265

Funkce pro vylepšení obrazu:

Full-color

Počet snímků (fps):

Rozlišení (MPx):

IR/LED přísvit (m):

Popis TP-Link VIGI C540V, 4MP, PTZ, PoE, 3xZoom, Dual Lens, IR 30m, Micro SD card

Naposledy navštívené produkty

TP-Link VIGI C540V, 4MP, PTZ, PoE, 3xZoom, Dual Lens, IR 30m, Micro SD card

Vivotek FD9389-EHV-V3 Venkovní IP kamera 5MPx dome, 103,4°, Smart IR 40 m, člověk/vozidlo, AI VCA analýzy

CAMERA
Image Sensor	1/3” Progressive Scan CMOS
Shutter Speed	1/3 to 1/10000 s
Slow Shutter	Yes
Minimum Illumination	0.005 Lux; 0 Lux with IR/white light
Day/Night Mechanism	IR Cut Filter
Day/Night Switch	Unified/ Scheduled/ Auto
Zoom	3x Mixed Zoom
LENS
Focal Length	4-12 mm (Mixed Zoom)
Aperture	F1.6
FOV	Diagonal FOV: 100°, Horizontal FOV: 84°, Vertical FOV: 46°
Lens Mount	M12*P 0.5
PTZ
Pan/tilt Range	Pan: 0° to 332°, Tilt: 0° to 120°
Pan/tilt Speed	Pan Speed: Configurable from 1° to 55°/s; Preset Speed: 55°/s Tilt Speed: Configurable from 1° to 40°/s, Preset Speed 40°/s
Presets	300
Patrol Scan	8 patrols, up to 8 presets for each patrol
Power-off Memory	Yes; Auto restore to previous PTZ and lens status after power failure
Park Action	Yes; Preset; Patrol Scan
3D Positioning	Yes
VIDEO
Max. Resolution	2560 X 1440
Main Stream	Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2560x1440, 2304x1296, 2048x1280, 1920x1080,1280x720
Sub-Stream	Frame Rate: 50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps 60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 640x480, 352x288, 320x240
Bit Rate Control	CBR, VBR
Video Compression	Main Stream: H.265+/H.265/H.264+/H.264 Sub-Stream: H.265/H.264
H.264 Type	Main Profile/High Profile
H.264+	Main Stream Supported
H.265 Type	Main Profile
H.265+	Main Stream Supported
Video Bit Rate	Main Stream: 256 Kbps to 4 Mbps Sub-Stream: 64 Kbps to 512 Kbps
ILLUMINATOR
IR LED	Quantity: 1 Range: 30m Wavelength: 850nm
White LED	Quantity: 3 Range: 30m
Illuminator On/Off Control	Auto/Scheduled/Always on/Always off
ANGLE ADJUSTMENT (MANUAL)
Range	Pan: 0° to 332°, Tilt: 0° to 120°
Image Settings	Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software
Image Enhancement	BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range	DWDR
SNR	? 52 dB
Image Parameters Switch	Yes
Privacy Mask	Up to 4 Masks
ROI	1 Region
OSD Setting	Yes
AUDIO
Audio Communication	Two-Way Audio
Audio Input	Yes
Audio Output	Yes
Audio Compression	Yes
Audio Sampling Rate	8KHz
Environment Noise Filtering	Yes
Audio Bit Rate	64 Kbps(G.711 alaw)
NETWORK
Security	Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Protocol	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
API	Open Network Video Interface (Profile S)
Simultaneous Live View	3 Main Streams & 3 Sub-Streams
Client	VIGI App, VIGI Security Manager, Web UI
Web Browser	Google Chrome® 57 and above Firefox® 52 and above Safari® 11 and above Microsoft® Edge 91 and above
Cloud	Yes
ONVIF	Yes
INTERFACES
Network Interface	1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm	N/A
Reset Button	Yes
Power	DC Power Port
On-board Storage	Built-In Memory Card Slot, Support MicroSD Card, up to 256 GB
Built-in Microphone	Yes; Records Anything Going on within a 15-ft Radius of the Camera
Built-in Speaker	Yes
Audio	N/A
ALARM AND EVENT MANAGEMENT
Smart Event	Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic Event	Motion Detection, Video Tampering Detection, Exception ( Illegal Login)
Alarm Linkage	Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing
Linkage Method	N/A
Output Notification	Message Push
GENERAL

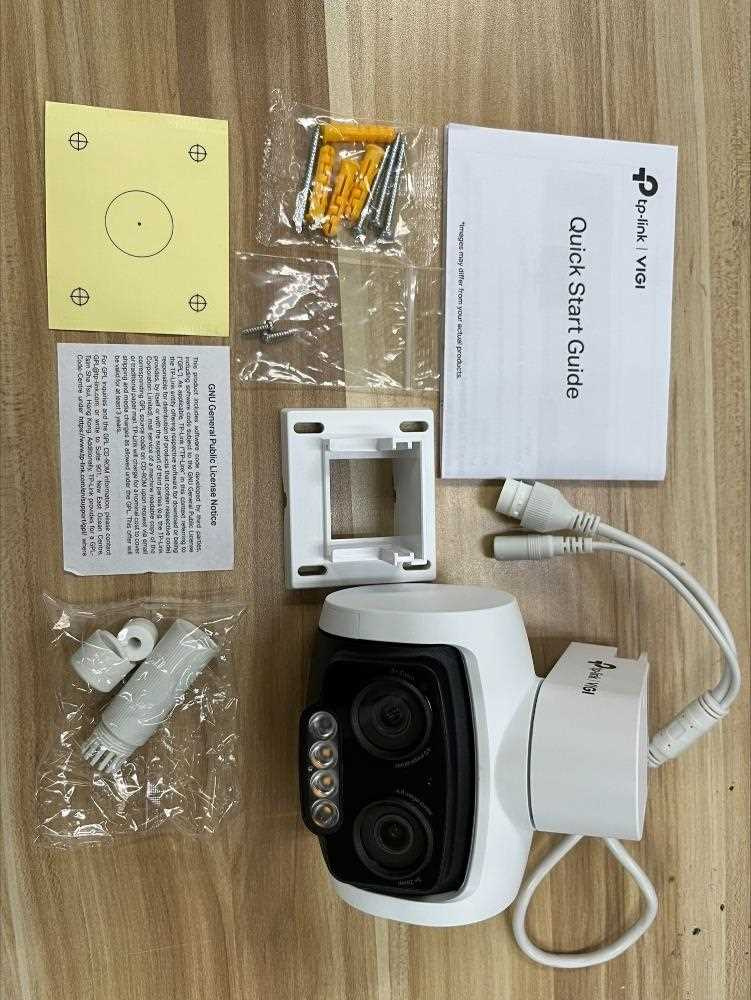

Package Contents	VIGI Network Camera Quick Start Guide Waterproof Cable Attachments Mounting Accessories
Operating Temperature	-30–60 °C
Storage Temperature	-40–60 °C
Storage Humidity	95% or Less (Non-Condensing)
Operating Humidity	95% or Less (Non-Condensing)
Material	Plastic
Net Weight	0.43 Kg
Gross Weight	0.66 Kg
Power Supply	12V DC ± 5%, Max. 14 W, 5.5mm Coaxial Power Plug PoE: 802.3at, class 4, Max. 16 W
Protection	IP66
Product Dimensions (L x W x H)	107× 136× 139 mm
Certifications	CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC

TP-Link VIGI C540V, 4MP, PTZ, PoE, 3xZoom, Dual Lens, IR 30m, Micro SD card

TP-Link VIGI C540V

4MPx venkovní barevná síťová kamera VIGI Wi-Fi s Dual-Lens Varifocal a funkcí otáčení a naklápění
